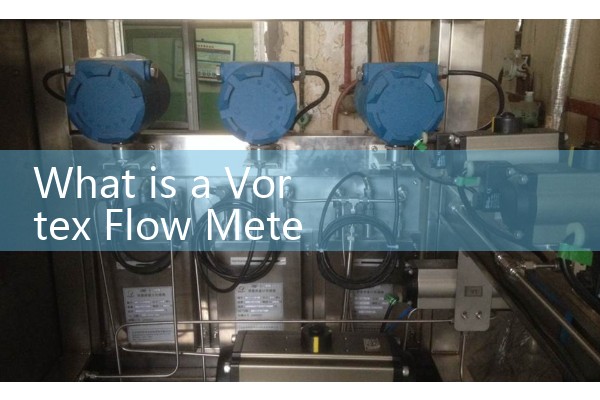

What is a Vortex Flow Meter: Von Karman Shedding Frequencies Explained
Quick Answer: A vortex flow meter measures fluid flow by reading the frequency of vortices that shed from a fixed bluff body inside the pipe. This frequency is proportional to flow velocity, a relationship first studied by Theodore von Karman. Silver Automation Instruments supplies vortex meters that convert this shedding frequency into standard signals like 4-20 mA HART or pulse, and they work on steam, gas, and clean liquids from DN15 up to DN300.
A vortex flow meter has no moving parts that wear out. The main component is a bluff body, often a trapezoidal bar welded across the pipe diameter. When fluid passes around this bar, alternating low-pressure vortices form and detach from each side. This is the von Karman vortex street. The meter sensor, usually a piezoelectric crystal or a capacitive element, counts the shedding frequency behind the bluff body. Flow rate is then calculated directly from that frequency. Because the relationship is linear, a vortex meter does not need the complex correction factors that an orifice plate does. In practice, this means you get a reliable measurement from 1 m/s up to 80 m/s for gas, or 0.3 m/s to 9 m/s for liquids.
How the von Karman Effect Works in a Flow Meter
Theodore von Karman found that the distance between vortices is constant for a given obstacle shape. In a pipe, the bluff body width d and the vortex shedding frequency f define the Strouhal number St, which stays nearly constant over a wide Reynolds number range. The flow velocity V follows the formula f = St * V / d. This simple physics is why a vortex meter can offer accuracy of +-0.75 percent of reading for liquids and +-1.0 percent for gas and steam, with repeatability around 0.15 percent. Most engineers skip the academic part and remember this: no flow, no vortices. As soon as flow starts, the meter produces a signal directly tied to velocity, with no zero drift.
Common Applications and Operating Limits
We see vortex flow meters installed heavily on utility steam lines in countries like Vietnam, the Philippines, and Saudi Arabia. A saturated steam loop at 10 bar and 180 degrees Celsius is a classic fit. Silver Instruments offers models with an integrated PT100 temperature sensor and a built-in flow computer. This configuration outputs mass flow of steam directly in kg/h, compensating for density changes. That matters a lot when steam pressure varies during the day.
The same meter also measures compressed air, natural gas, and clean water. However, vortex meters do not like conductive liquids with high solids content or very viscous fluids above about 30 cP. Here is the thing: if a customer in a paint factory sends us a request for a flow meter for resin at 500 cP, we will suggest a positive displacement or Coriolis meter instead, not a vortex meter. For water with minor particles, a vortex meter can work if a upstream strainer is installed. Do not use one on raw sewage without pretreatment. We have seen this on customer sites many times, the sensor gets fouled and signal drops.
Installation Tips from Field Experience
Vo
A practical note on ATEX: many of our vortex meters come with ATEX Zone 1 certification for gas and dust, suitable for refineries in Nigeria or chemical plants in Malaysia. The electronics housing is usually IP67. Connection options include M20 cable glands or 1/2 inch NPT. Output wiring is two-wire 4-20 mA HART 7, or a separate pulse output for totalizing. If your SCADA system needs Modbus RTU, we can supply that too.
FAQ
Q: What fluids can a vortex flow meter measure reliably?
A: Clean, single-phase fluids. Saturated and superheated steam, compressed air, natural gas, demineralized water, and many hydrocarbons below 30 cP work well. Silver Instruments supplies meters rated up to 350 degrees Celsius for high-temperature steam service.
Q: What is the typical accuracy of a vortex meter?
A: For liquids, +-0.75 percent of reading from 10 percent to 100 percent of flow range. For gas and steam, +-1.0 percent of reading. The repeatability is better than +-0.15 percent, which makes it suitable for custody transfer if calibrated.
Q: How do I select the right meter size?
A: Match the meter size to the expected flow range, not just the pipe DN. Provide Silver Instruments your minimum, normal, and maximum flow rates, along with pressure and temperature. We calculate the Reynolds number and check that vortex frequency stays within the sensor bandwidth, usually between 5 Hz and 3000 Hz.
Q: Does a vortex flow meter require a power supply?
A: Yes. The 4-20 mA HART version needs a 24V DC loop power. The pulse output version can work with battery-powered totalizers in remote locations. Silver Instruments can also supply a loop-powered indicator that shows flow rate and total on site.
Q: Can a vortex meter measure low flow rates?
A: It depends on the fluid density. For gas at low pressure, the minimum measurable flow is higher because the vortices are weaker. In liquid lines, we can go as low as 0.3 m/s. For low-flow measurement, ask us about a multi-parameter vortex meter that senses both velocity and temperature to correct for density changes dynamically.
