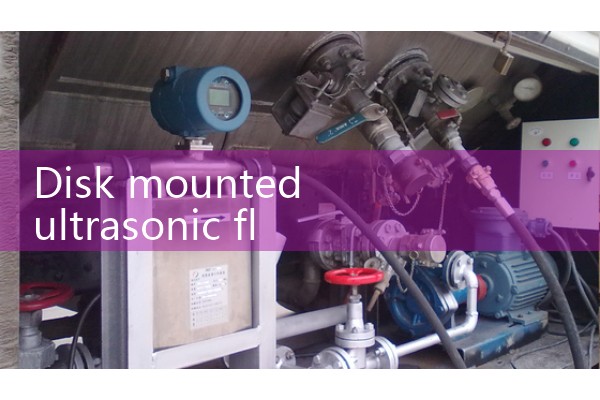

Disk mounted ultrasonic flowmeter

『Disk mounted ultrasonic flowmeter』Related information(v cone flow meter|rotary gas meter|gallon meter|gear meter|metal tube rotameter|glass tube rotameter|nutating disk meter|transit time ultrasonic flow meter|wedge flow meter|pd meters|hydraulic flow meter|ultrasonic water flow meter|water flow meter|air flow meter|magnetic water flow meter|oxygen flow meter|gas flow meter|argon flow meter|air velocity meter|gasoline flow meter|fuel flow meter|ultrasonic water meter|digital water meter|nitrogen flow meter|solid flow meter|Oxygen tank flow meter|digital water flow meter|diesel fuel flow meter|steam flow meter|02 flow meter|compressed air flow meter|oil flow meter|liquid flow meter)

1. What are the technical indicators of ultrasonic flow meters?

Dalian Sonica (Nanosecond Technology) Co., Ltd. has been specializing in the production of ultrasonic flow meters for 17 years. The technical indicators of FV301

8, FV401

8, FV2000 series ultrasonic flow meters are widely used in the fields of water supply and drainage, petrochemicals, metallurgy and papermaking, water conservancy and power, municipal management, etc. It is an industrial instrument that uses ultrasonic time difference measurement principle to measure the flow of clean and uniform liquids without high concentration suspended particles or bubbles in various pipelines. Basic structure: Measurement host+1 pair of sensors+dual screen high-frequency cable used to connect the host and sensors. The measurement host can be connected to an external controller, remote transmission device, etc. Main features: Using microprocessors and the latest electronic technology to complete ultrasonic echo identification, achieving high precision and reliability. *LCD Chinese display, easy to use and operate virtual stool. *Equipped with RS232, 4-20mA, pulse output and other interfaces, suitable for various remote transmission requirements. *Both the power supply and signal reception adopt anti-interference design, which can work normally under harsh conditions. Technical parameters: Measurement liquid: single fluid such as water, seawater, alkali, etc., turbidity less than 10000ppm, particle size less than 1mm; pipeline material: ultrasonic penetrable full pipe such as steel, cast iron, PVC pipe, etc., allowing thin layer dense lining pipe lining material: rubber, epoxy asphalt, fiberglass, mortar, etc., or unlined pipe diameter range: DN13m

m~6000mm, flow rate range: -16m/s~0~+16m/s, bidirectional flow accuracy: ± 1.0% displayed value (under standard conditions). Linearity: 0.5%. Straight pipe section length: upstream>10D, downstream>5D (D: pipe diameter) Display mode: dual row 20 character LCD display Environmental temperature/humidity: host -20 ℃~+50 ℃; The sensor can operate in water at temperatures ranging from -20 ℃ to+120 ℃, with a depth of less than 2m. The FV series ultrasonic flowmeter host can be divided into wall mounted, disc mounted, explosion-proof, etc; Probes are mainly divided into three types: external attachment type, insertion type, and pipe segment type probes. The externally bound probe is directly tied to the outer wall of the pipeline, and can measure the fluid inside the pipeline as long as it is installed according to the installation requirements. The plug-in thick pants probe needs to be installed by drilling holes on the pipeline. Dalian Sony Kanas Technology Co., Ltd. also specializes in repairing and selling Japanese Fuji ultrasonic flow meters, with 17 years of maintenance experience. If you have similar problems, you can contact their unit.

2. Where are ultrasonic flow meters mainly used? According to the experience of Jingjun Automation Equipment Engineers, ultrasonic flow meters are mainly used in the following working conditions and industries: 1. Environmental protection: municipal sewage measurement 2. Oilfield: original flow measurement, well cementing, sock removal, mud flow measurement Oilfield oil containing sewage flow measurement, oil well injection water flow measurement 3. Water companies: river, river Reservoir raw water measurement, tap water flow measurement, volume measurement, 4 petrochemical indust
