Industrial IFM Gas Flow Meter Calibration for Argon, CO2, and Nitrogen Piping
Quick Answer: Calibrating an insertion thermal mass flow meter (IFM) for argon, CO2, or nitrogen service requires real gas calibration on a dedicated bench. An air calibration cannot match the thermal conductivity and density of these process gases, so it often produces errors of 10 to 20 percent in mass flow readings. For accurate billing, gas distribution control, or inerting processes, you need a gas specific calibration curve with a target accuracy of plus minus 1.0 to 1.5 percent of reading. Send us your gas composition, line pressure in bar, pipe DN, and full scale flow rate. We will return a fixed price calibration quote within one working day.
Why Air Calibration Fails for Argon, CO2, and Nitrogen
Most thermal mass flow meters leave the factory with an air calibration. That is standard because air is cheap and safe. But an IFM probe relies on heat transfer from a heated sensor to the flowing gas. The cooling effect changes with gas thermal conductivity, density, and specific heat, not just velocity. Here is the thing. Argon has a thermal conductivity around 0.016 W/m·K at 20 degrees Celsius. Air sits at 0.026 W/m·K. Nitrogen is very close to air at 0.026 W/m·K, yet its density differs. Carbon dioxide is lower still at about 0.0146 W/m·K. When you run an air calibrated IFM on argon or CO2 piping, the signal processing chip interprets the heat loss incorrectly. A factory default curve typically yields an under reading for argon and an over reading for CO2. In practice, we have seen a CO2 purge line in a brewery show 15 percent higher flow than actual, which wasted gas and cooled the tank too fast. One semiconductor plant in Malaysia measured argon flow with an air curve and got a 12 percent low reading, affecting sputtering process quality. The fix is not a simple K factor offset because the relationship is nonlinear across the flow range. You need a multi point calibration with the actual process gas.
Our In House Gas Calibration Bench for IFM Meters

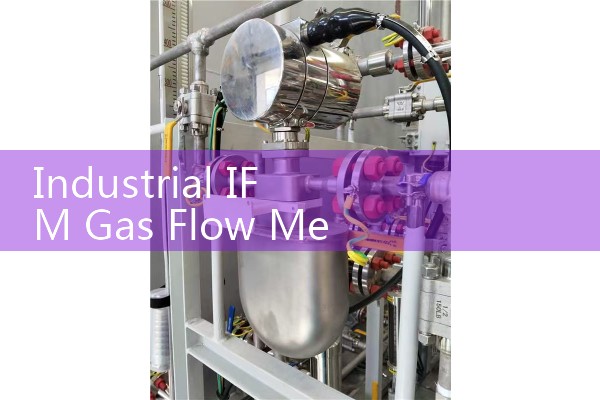

Silver Automation Instruments operates a dedicated gas flow calibration rig in Nanjing, China. The bench handles insertion and inline thermal mass flow meters from DN15 up to DN300 pipe diameters. We calibrate with high purity argon, CO2, and nitrogen cylinders, using a master reference Coriolis mass flow meter and laminar flow elements as transfer standards. The reference accuracy is better than plus minus 0.5 percent of reading. This allows us to deliver a customer meter accuracy of plus minus 1.0 percent of reading or plus minus 1.5 percent of reading, depending on the flow range and gas type. The system covers flow rates from 0.5 Nm3/h up to 600 Nm3/h. Pressure goes up to 16 bar, and gas temperature can be set between 10 and 50 degrees Celsius. Most engineers skip this part: we also log ambient temperature and pressure and correct the master meter output to standard conditions in real time. You receive a calibration certificate with as found and as left data, traceable to ISO 17025 through our reference instruments.
Typical Calibration Ranges and Accuracy Targets
For a DN50 argon supply line at a steel plant, a common span is 0.5 to 50 Nm3/h with a target accuracy of 1.0 percent of reading. In food packaging, a DN25 nitrogen header often needs 0.2 to 20 Nm3/h. A CO2 injection pipe for pH control in water treatment might use a DN40 IFM with a span of 0.3 to 30 Nm3/h. We can calibrate at 5 to 10 flow points evenly distributed across the turndown range. More points give a tighter fit, especially below 10 percent of full scale where thermal meters tend to lose accuracy. A customer in Vietnam recently sent us five IFM meters for nitrogen inerting on a chemical tank farm. The raw air calibration error was up to 18 percent at low flow. After an 8 point nitrogen calibration, the error dropped below 1.2 percent across the entire range. That project also used our 4-20 mA HART output configuration so the DCS could read the mass flow directly in kg/h. Whatever output protoc
Steps to Send Your IFM Meter for Calibration
First, confirm your meter model, pipe size (DN), and process gas. Second, share the normal operating pressure in bar, temperature in degrees Celsius, and the full scale flow you need. Third, we quote a calibration fee and lead time, typically 5 to 7 working days after the meter arrives. You ship the instrument to our Nanjing service center. We inspect the probe and electronics, perform the multipoint gas calibration, and ship the meter back with a calibration certificate and an updated digital correction file if the transmitter supports it. For meters with RS485 Modbus, we can also load the new calibration table directly. If your instrument is installed on a critical line and cannot be removed, ask about our on site calibration service with portable reference meters and dry gas cylinders. We have done this on argon distribution headers in Australia and nitrogen purging lines in Turkey.
On Site vs. Laboratory Calibration for Industrial Piping
Laboratory calibration gives the lowest uncertainty because we control temperature, pressure, and gas purity. But on site calibration has its place. When a process cannot stop, we bring a transfer standard thermal mass flow meter already calibrated for the target gas and mount it in series with the device under test. We flow the real process gas while purging with the same gas. On site accuracy is typically plus minus 2.0 to 3.0 percent of reading, depending on pipe access and flow stability. One paint manufacturer in Southeast Asia chose on site argon calibration for five meter loops because the shutdown window was only four hours. We finished the verification and adjustment within three hours. Both options include a detailed report. The choice depends on your shutdown cost and accuracy demand.
Frequently Asked Questions
Q: Can I simply use a conversion factor from air to argon?
A: A single multiplier cannot compensate for nonlinear heat transfer differences. Especially at low flow rates, the error curve bends. A multipoint calibration with actual gas is the only reliable method for custody transfer or batch control.
Q: What pipe sizes do your IFM calibration services support?
A: We can calibrate insertion probes for pipes from DN25 to DN300. For in line thermal mass flow meters, we handle DN15 to DN100 with the corresponding process connections, including NPT, flange, and tri clamp.
Q: How often should I recalibrate my IFM meter for nitrogen service?
A: Most customers recalibrate every 12 to 24 months. If the gas contains moisture or particles, sensor fouling can drift the reading faster. A quarterly zero check at no flow condition helps you spot drift early.
Q: Do you provide calibration certificates accepted by ISO auditors?
A: Yes. Our certificates include reference instrument traceability, environmental conditions, as found and as left data, and calibration uncertainty. They satisfy ISO 9001 and local metrology requirements across Australia, GCC, and ASEAN countries.
Q: Can you calibrate for mixed gas or variable composition?
A: We calibrate for a defined gas composition. If your mixture ratio changes in operation, we can provide a lookup table based on several calibration curves. However, for custody accuracy, a Coriolis mass flow meter is often a better choice because it measures mass directly and ignores gas properties.
Get in touch for a calibration quote
Send your pressure (bar), temperature (°C), pipe size (DN), and flow range to [email protected]. You can also call us at +86-135-1213-1526 or reach our team on Whatsapp at 86-135-12131526. For WeChat inquiries, add +86 13512131526. Silver Automation Instruments offers in house and on site IFM gas flow meter calibration for argon, CO2, and nitrogen piping across Southeast Asia, Oceania, the Middle East, Africa, and Latin America.
