Isa Flow Meter Symbols Reference: Interpreting Standard P&ID Drawing Icons According to International Automation Standards
Quick Answer: ISA flow meter symbols on P&ID drawings follow the ISA 5.1 instrument tag system. FT means flow transmitter. FE means flow element. FQ means flow totalizer. Read the tag letters and the drawing legend first. Then match your fluid, pressure, temperature, pipe size, and flow range to a real flow meter model.
This reference covers the main ISA flow meter symbols, tag letters, line type meanings, and selection errors. It is for process engineers, instrumentation engineers, EPC buyers, and maintenance teams. Silver Automation Instruments is a flow meter manufacturer and supplier. We serve customers in Southeast Asia, Oceania, Latin America, Africa, and the Middle East.
Why Flow Meter Symbols Are Not Just Drawings
A P&ID is the shared language between design, procurement, and site teams. The flow meter symbol tells you the measurement function. It does not always tell you the exact technology. Most projects follow ANSI/ISA-5.1. The first letter F stands for flow. E means element. T means transmitter. I means indicator. Q means totalizer.
So a bubble with FT-2102 is a flow transmitter in loop 2102. A tag with FE-2102 is the flow element in the same loop. An FQ tag is a flow totalizer, common on water supply, fuel, and custody transfer lines.
In practice many drawing offices mix ISA 5.1 with ISO 3511 or IEC 62424. That creates confusion. The drawing legend always controls the final meaning.
Common ISA Flow Meter Tags and Symbols
FE Flow Element is the primary sensor in the pipe. It can be an orifice plate, a vortex shedding body, a magnetic flow tube, or a Coriolis sensor.
FT Flow Transmitter sends a signal. Most send 4-20 mA HART, pulse, or Modbus. A magnetic flow meter, vortex meter, or Coriolis meter often combines FE and FT in one body.
FIT Flow Indicating Transmitter includes a local display plus a transmitted signal. Operators can read the value at the device. The DCS or PLC still receives the signal.
FQ Flow Totalizer totals flow volume or mass. It appears on batching, custody transfer, and diesel or chemical dosing lines. Some P&IDs use FQT for a flow totalizing transmitter.
FCV or FY appears in flow control loops. FY is a converter, relay, or function block. The control valve is a separate final element. Do not confuse the flow meter with the control valve.
Symbols by Flow Meter Technology
An orifice plate flow meter often appears as a plate between two flanges, with a transmitter connected by impulse lines. This is common in natural gas and steam. But if the liquid is dirty or viscous, impulse lines can block. A wastewater plant in Thailand replaced an orifice plate with an electromagnetic flow meter on a DN300 sludge line for this reason.

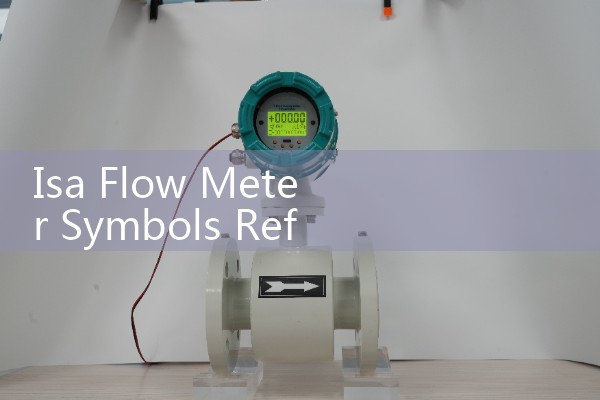

A magnetic flow meter symbol may show a flanged inline device with an electrical bubble. It is good for conductive liquids like water, wastewater, sludge, acid, and chemical dosing. Silver Instruments supplies electromagnetic flow meters from DN10 to DN3000 with PTFE lining and 4-20 mA HART output.
A Coriolis mass flow meter symbol may show a U shaped or inline meter with a transmitter circle. It measures mass flow, density, and temperature. It fits food, beverage, chemical, and marine fuel applications. Common sizes are DN15 to DN200.
A vortex flow meter symbol is typical for steam, compressed air, and gas. It has a bluff body in the line and no moving parts. It works well for saturated steam in Southeast Asian food and chemical plants.
An oval gear flow meter symbol fits small oil and fuel lines. It is common from DN4 to DN50 for diesel, hydraulic
Line Types and Signal Symbols
The line between the flow element and transmitter has meaning. A solid line normally means a hardwired electrical signal or direct process connection. A dashed line may mean pneumatic signal, data link, or impulse line. Most new plants use two wire 4-20 mA HART. Some older Middle East oil and gas units still use pneumatic flow transmitters. Procurement teams should confirm the output before ordering.
Common P&ID Reading Mistakes
One mistake is treating every FT bubble as a complete flow meter. The FT may be only the transmitter. The FE is a separate sensor. The instrument list and data sheet show the full scope. Do not order a transmitter alone if the site needs the full flow tube, flanges, grounding rings, and converter.
Another mistake is ignoring the process data. The symbol does not replace pressure, temperature, viscosity, conductivity, or flow range. For seawater desalination, Silver Instruments can quote a PTFE lined electromagnetic flow meter or a clamp on ultrasonic meter.
Here is the thing. A P&ID symbol is a shortcut, not a full specification. We have seen a site order a flow meter from the symbol and ignore the fluid. That causes startup delays and extra cost.
Recommended Silver Instruments Flow Meters for P&ID Tags
For a liquid FE and FT loop, our electromagnetic flow meter series covers water, wastewater, acids, and slurries. It supports 4-20 mA HART, pulse, RS485, and Modbus.
For an FQ or FQT tag on mass balance or custody transfer, our Coriolis mass flow meter measures mass flow directly. It fits food ingredients, chemical mass balance, and marine bunker fuel.
For steam or compressed air, our vortex flow meter handles saturated steam, superheated steam, and industrial gases. It includes temperature and pressure compensation.
For diesel, oil, or high viscosity liquids, our oval gear flow meter is the better match. If the P&ID shows a small line from DN4 to DN50 and the fluid is oil, do not force a magnetic flow meter.
For existing pipes without shutdown, our clamp on ultrasonic flow meter fits water, chilled water, and clean liquid lines.
FAQ: Five Key Questions from Engineering and Procurement Teams
Q: What does FT mean on a P&ID?
A: FT means flow transmitter. It sends a flow signal, normally 4-20 mA HART, pulse, or a digital protocol.
Q: What is the difference between FE and FT?
A: FE is the flow element or primary sensor in the pipe. FT is the transmitter that converts the sensor signal into a standard output. Many flow meters combine FE and FT in one body.
Q: Which standard governs ISA flow meter symbols?
A: ANSI/ISA-5.1 is the most common standard. Some projects also use ISO 3511 or IEC 62424. The drawing legend always controls the final meaning.
Q: Does a P&ID symbol give the exact flow meter model?
A: No. The symbol shows the measurement function and sometimes the technology. The data sheet decides the exact model.
Q: Can Silver Instruments help with selection from a P&ID?
A: Yes. Send us your pressure in bar, temperature in degrees Celsius, pipe size DN, fluid name, and flow range. We will check the P&ID tag and propose a flow meter. Contact Silver Automation Instruments. Tel: +86-25-68650347. WhatsApp: +86-25-52155837. WeChat: +86 15365082610.
If your next project has FE, FT, FQ, or FQT tags on a P&ID, decode the ISA 5.1 letter code first. Then match the process data to the right flow meter technology. That reduces site errors and keeps the measurement loop running from day one.
